SmartAdmin Application Architecture

1. System Overview​

SmartAdmin is an Electron-based desktop application that provides AI-powered administrative automation with chat interface, action script management, and database integration.

High-Level Application Architecture Diagram:​

High-Level System Architecture Diagram​

2. Core Components​

  1. Frontend Layer (Renderer Process)

    • Chat interface (src/pages/index.html) - Main AI chat UI interface.
    • Settings Panel (src/pages/settings.html) - Configuration management.
    • Action Scripts Manager (src/pages/actionScript.html) - Automation workflow editor.
    • Login Interface (src/pages/login.html) - User authentication

  2. Main Process Controller

    • Entry Point (main.js) - Application lifecycle management.
    • IPC Handlers (src/modules/ipc-handlers.js) - Communication bridge between processes.
    • Settings Handler (src/modules/settings-handler.js) - Configuration persistence.

  3. AI Processing System

    • AI Manager (src/modules/ai-manager.js) - Unified AI orchestration.
    • Local LLaMA Handler (src/modules/llm-handler.js) - Local model integration.
    • OpenRouter Handler (src/modules/openrouter-handler.js) - Cloud AI API integration.
    • OpenAI Handler (src/modules/openai-handler.js) - Direct OpenAI integration.

  4. Knowledge & Retrieval System

    • RAG Handler (src/modules/rag-handler.js) - Retrieval-Augmented Generation.
    • FastEmbed Handler (src/modules/fastembed-handler.js) - Vector embedding generation.
    • LanceDB Handler (src/modules/lancedb-handler.js) - Vector database management.

  5. Automation & Action System

    • Action Handler (src/modules/action-handler.js) - Script lifecycle management.
    • Action Player (src/modules/actionplay-handler.js) - Browser automation execution.
    • Playwright Manager (src/modules/playwright-manager.js) - Browser instance management.
    • Action Functions (src/modules/action-functions.js) - Reusable utility functions.

  6. Data Layer

    • Database Handler (src/modules/database-handler.js) - PostgreSQL integration.
    • User Authentication (src/modules/user-authentication-handler.js) - User session management.

  7. External Services

    • Ably Handler (src/modules/ably-handler.js) - Real-time messaging.
    • Auto Updater (src/modules/auto-updater.js) - Application updates.

3. Key Features​

Multi-Modal AI Support

  • Supports local LLaMA models, OpenRouter, and OpenAI APIs.
  • Unified interface through AIManager.
  • Context-aware responses with RAG integration.

Intelligent Document Retrieval

  • Vector-based document search using FastEmbed and LanceDB.
  • Automatic relevance scoring and context injection.
  • Document library management in shelf directory.

Browser Automation

  • Playwright-powered action script recording and playback.
  • Visual script editor with parameter support.
  • Reusable action templates with project function integration.

Real-time Collaboration

  • Ably-powered real-time messaging.
  • User session management and authentication.
  • Admin dashboard integration.

Data Flow

  1. User Interaction → Chat interface receives input.
  2. AI Processing → AIManager routes to appropriate AI provider.
  3. Context Enhancement → RAG system retrieves relevant documents.
  4. Database Integration → Queries PostgreSQL for additional context.
  5. Action Execution → Triggers automated workflows if needed.
  6. Response Generation → Returns enriched AI response to user.

4. Security & Configuration​

  • Settings Management - Centralized in settings-handler.js
  • Authentication - User session validation through database
  • File Security - Sandboxed action script execution
  • Admin Controls - Admin dashboard for user and system management

5. Development Architecture​

SmartAdmin-App/
├── main.js                                # Electron main process entry point
├── package.json                           # Dependencies and build configuration
├── package-lock.json                      # Dependency lock file
├── .gitignore                             # Git ignore patterns
│
├── build/                                 # Build resources
│
├── dist/                                  # Built application output
│
├── scripts/                               # Build and utility scripts
│   ├── copy-browsers.js                   # Build script for packaging playwright browsers
|   ├── post-install.js                    # Post-install script to ensure Playwright browsers are available in the built app
│   └── publish-with-token.js              # Script to publish the app with authentication token
│
└── src/                                   # Source code directory
    ├── assets/                            # Static assets (icons, images, sounds)
    │
    ├── modules/                           # Core business logic modules
    │   ├── ably-handler.js                # Real-time messaging
    │   ├── action-functions.js            # Reusable utility functions
    │   ├── action-handler.js              # Automation script management
    │   ├── actionplay-handler.js          # Browser automation execution
    │   ├── ai-manager.js                  # AI orchestration and routing
    │   ├── auto-updater.js                # Application update system
    │   ├── colors-log.js                  # Enhanced logging system
    │   ├── database-handler.js            # PostgreSQL integration
    │   ├── deeplink-handler.js            # Electron Deep linking support
    │   ├── dlcode-handler.js              # Download role settings with code
    │   ├── fastembed-handler.js           # Vector embedding generation
    │   ├── global-shortcuts.js            # Electron Global keyboard shortcuts
    │   ├── ipc-handlers.js                # Inter-process communication
    │   ├── lancedb-handler.js             # Vector database management
    │   ├── llm-handler.js                 # Local LLaMA model handler
    │   ├── openai-handler.js              # Direct OpenAI API integration
    │   ├── openrouter-handler.js          # OpenRouter/OpenAI API integration
    │   ├── os-notification.js             # Electron notifications system
    │   ├── otp-handler.js                 # One-time password management
    │   ├── playwright-manager.js          # Browser instance management
    │   ├── rag-handler.js                 # Retrieval-Augmented Generation
    │   ├── settings-handler.js            # Configuration management
    │   └── uparceluser-handler.js         # User authentication
    │
    ├── pages/                             # User interface files
    |   ├── css/                           # Stylesheets for pages
    |   |   ├── actionScript-styles.css    # Action script manager styles
    |   |   ├── notification.css           # Chat interface styles
    |   |   ├── settings-styles.css        # Settings panel styles
    |   |   └── styles.css                 # General styles
    |   |
    |   ├── js/                            # JavaScript for pages
    |   |   ├── actionScript.js            # Action script manager logic
    |   |   ├── login.js                   # User authentication logic
    |   |   ├── notification.js            # Chat interface logic
    |   |   ├── settings-config.js         # Settings template
    |   |   └── settings-manager.js        # Settings panel logic
    |   |
    │   ├── actionScript.html              # Action script manager
    │   ├── banned.html                   # User Ban page
    │   ├── index.html                     # Main chat interface
    │   ├── login.html                     # User authentication UI
    │   ├── notification.html              # Electron notification
    │   ├── settings.html                  # Configuration panel
    │   └── splashScreen.html              # Splash screen when app starts
    |
    └── preload/                           # Security bridge scripts

6. More Diagrams​

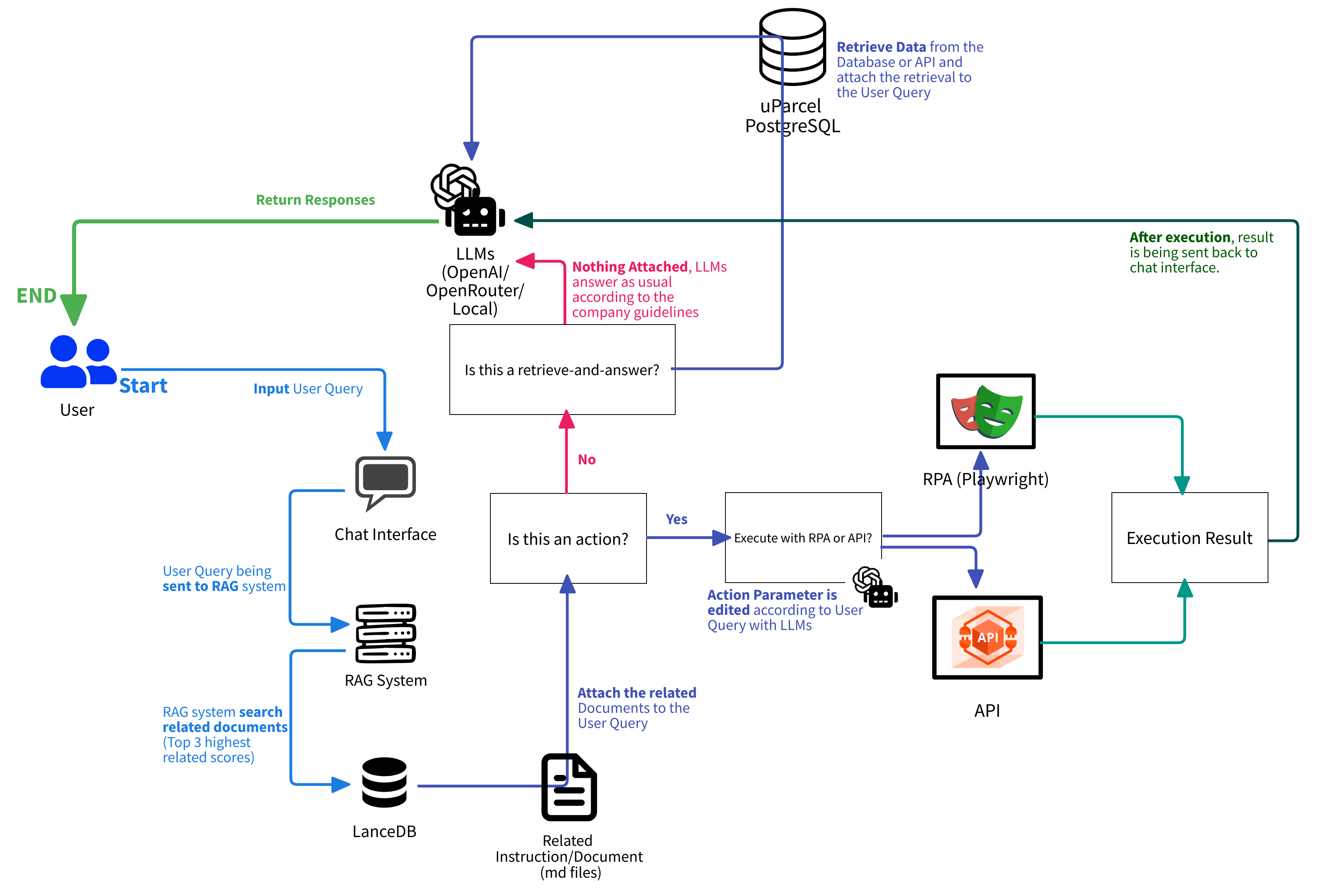

End-to-End Workflow Flowchart​

flowchart

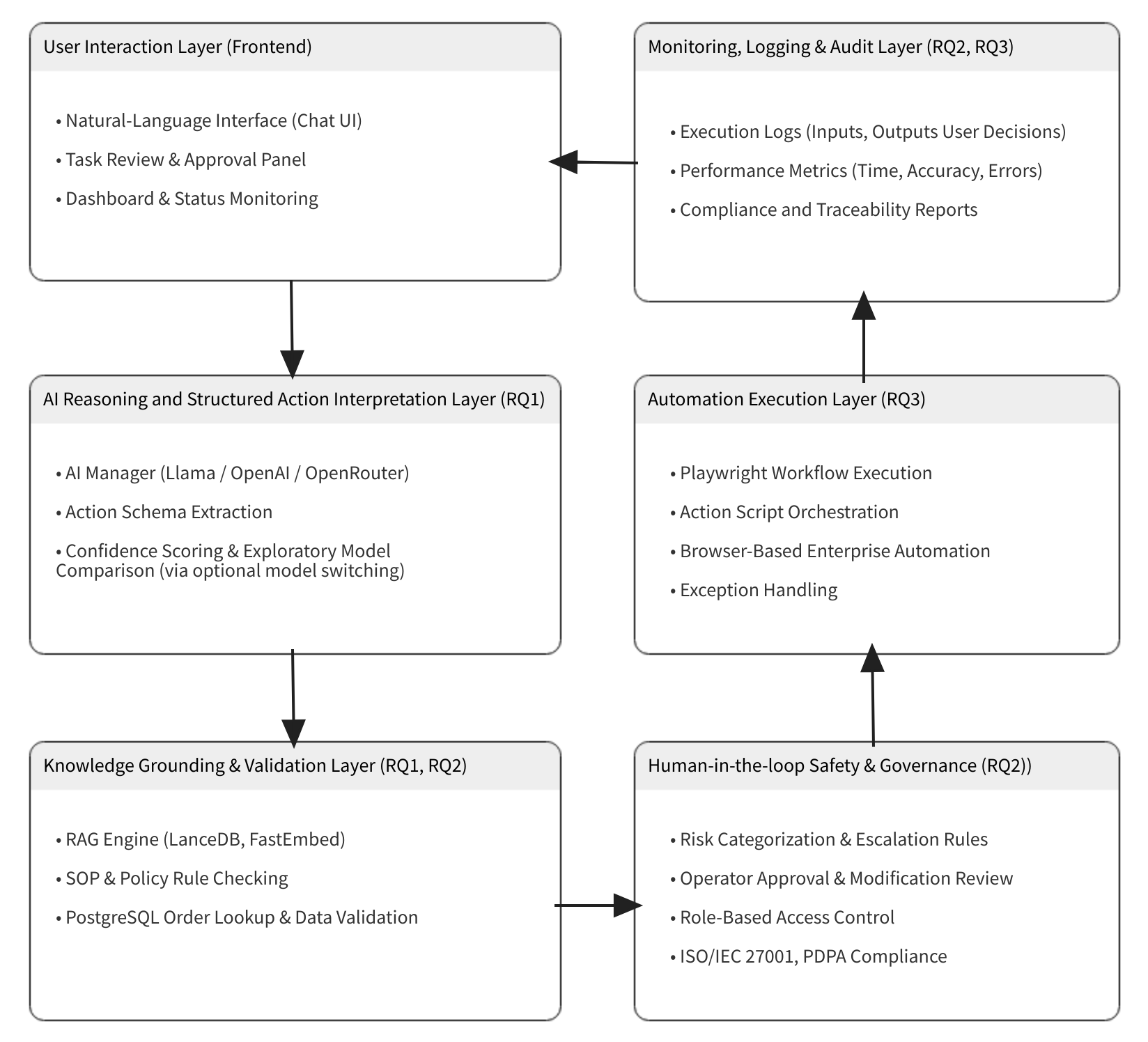

Layered Architecture Diagram​

layers

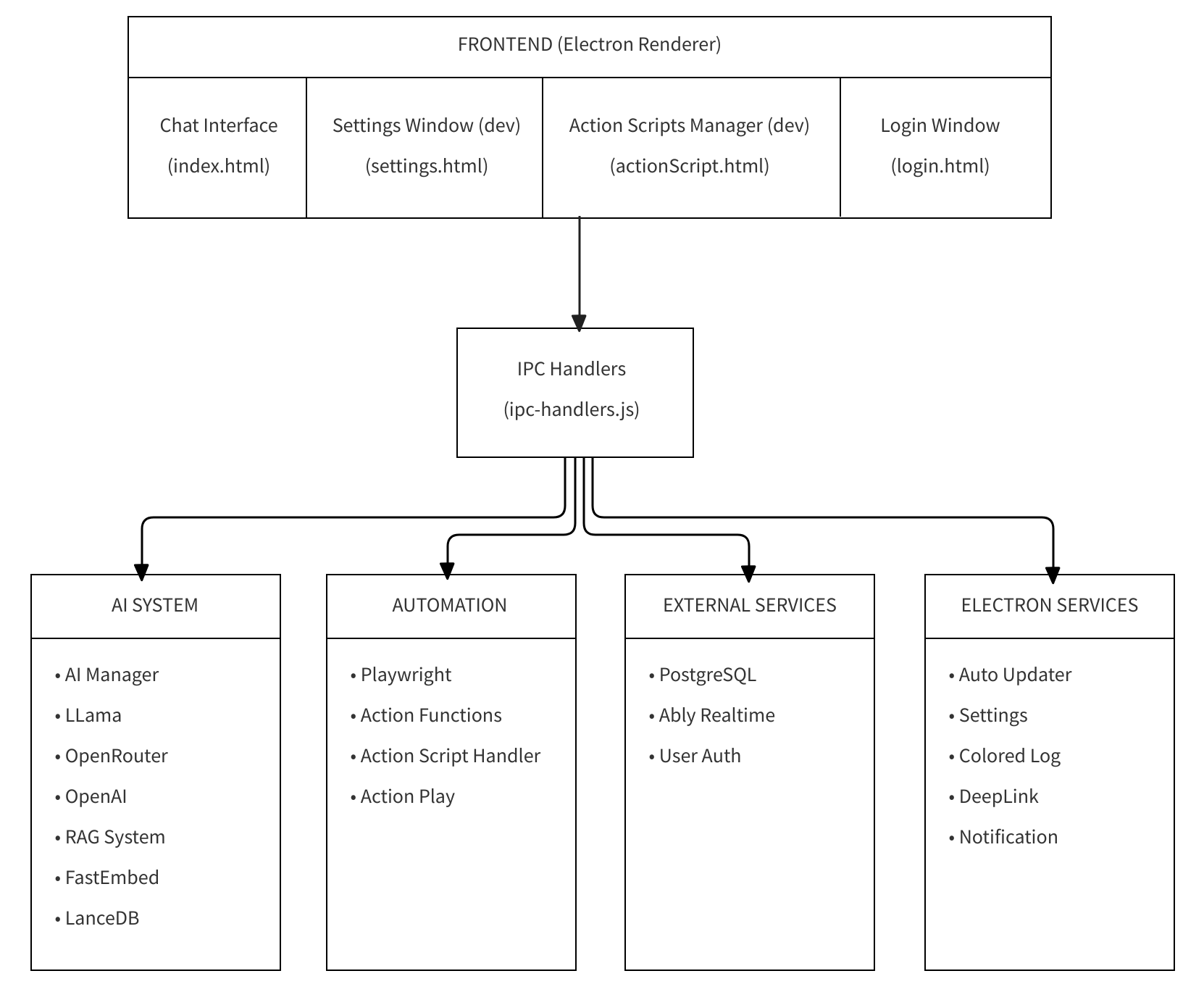

Developer Architecture Diagram​

dev-arch
